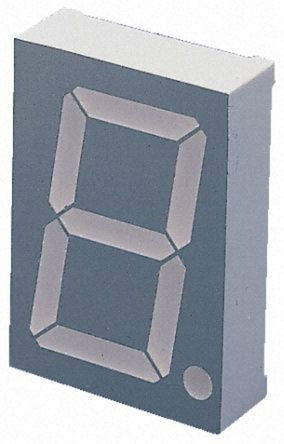

SBA23-11SURKCGKWA Kingbright 7-Segment LED Display, CA Green, Red 200000 μcd, 440000 μcd RH DP 57mm [SBA23-11SURKCGKWA]; 871-7371
by Kingbright
0₫
Mã kho: 8717371
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green, Red |
| Number of Segments | 7 |
| Dominant Wavelength | 570 / 630 nm |
| Character Width | 32.2mm |
| Character Height | 57mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Width | 48mm |
| External Height | 12mm |
| External Dimensions | 48 x 70 x 12mm |
| External Depth | 70mm |
| Luminous Intensity | 200000 μcd, 440000 μcd |
| Colour of Face | Grey |
| Power Dissipation | 150 mW, 300 mW |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Forward Current | 30mA |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 7.8 V, 8.4 V |
| Series | SBA23 |
| Decimal Orientation | Right Side |
