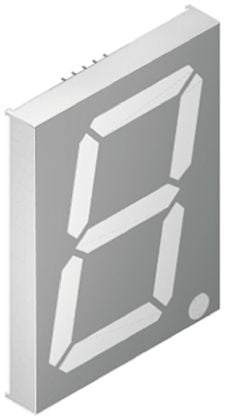

SA40-19CGKWA Kingbright 7-Segment LED Display, CA Green 100 mcd RH DP 101mm [SA40-19CGKWA]; 146-1469
by Kingbright
0₫
Mã kho: 1461469
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Character Width | 59.5mm |
| Character Height | 101mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Dimensions | 15 x 90 x 122mm |
| External Depth | 122mm |
| External Width | 90mm |
| External Height | 15mm |
| Luminous Intensity | 100 mcd |
| Colour of Face | Grey |
| Decimal Orientation | Right Side |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
