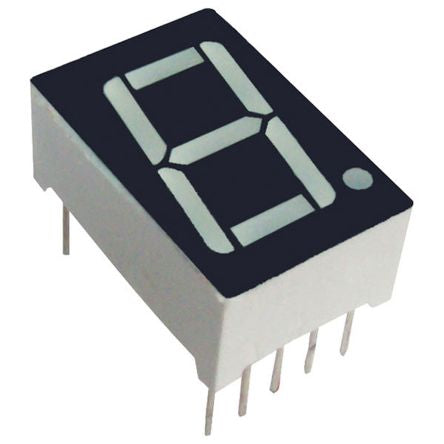

SA39-12CGKWA Kingbright 7-Segment LED Display, CA Green 21 mcd RH DP 10mm [SA39-12CGKWA]; 877-1508
by Kingbright
0₫
Mã kho: 8771508
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Green |
Number of Segments | 7 |
Dominant Wavelength | 570 nm |
Character Width | 6.2mm |
Character Height | 10mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Height | 7mm |
External Depth | 10mm |
External Width | 13mm |
External Dimensions | 13 x 10 x 7mm |
Luminous Intensity | 21 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Minimum Operating Temperature | -40°C |
Forward Voltage | 2.1 V |
Forward Current | 30mA |
Series | SA39 |
Decimal Orientation | Right Side |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
