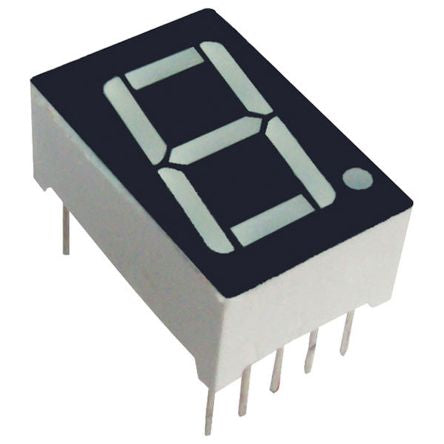

SA39-11CGKWA Kingbright 7-Segment LED Display, CA Green 21 mcd RH DP 10mm [SA39-11CGKWA]; 877-1498
by Kingbright
0₫
Mã kho: 8771498
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 570 nm |
| Character Width | 6.2mm |
| Character Height | 10mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 10mm |
| External Dimensions | 13 x 10 x 7mm |
| External Width | 13mm |
| External Height | 7mm |
| Luminous Intensity | 21 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Series | SA39 |
| Forward Voltage | 2.1 V |
