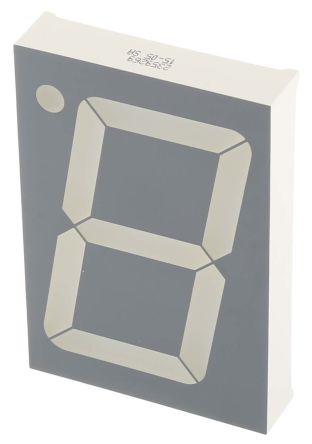

SA23-12EWA Kingbright 7-Segment LED Display, CA Red 57 mcd RH DP 57mm [SA23-12EWA]; 235-9269
by Kingbright
0₫
Mã kho: 2359269
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 617 nm |
| Character Width | 32.2mm |
| Character Height | 57mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Dimensions | 70 x 48 x 12mm |
| External Height | 70mm |
| External Depth | 12mm |
| External Width | 48mm |
| Luminous Intensity | 57 mcd |
| Colour of Face | Grey |
| Power Dissipation | 150 mW, 300 mW |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Forward Voltage | 4 V, 8 V |
