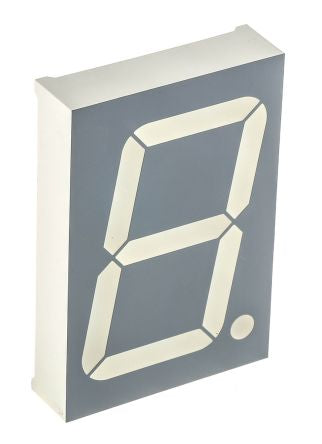

SA18-11SURKWA Kingbright 7-Segment LED Display, CA Red 310 mcd RH DP 44.5mm [SA18-11SURKWA]; 863-5036
by Kingbright
0₫
Mã kho: 8635036
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 26.1mm |
| Character Height | 44.5mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 56mm |
| External Dimensions | 38 x 56 x 11mm |
| External Depth | 11mm |
| External Width | 38mm |
| Luminous Intensity | 310 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75 mW, 225 mW |
| Decimal Orientation | Right Side |
| Maximum Operating Temperature | +85°C |
| Forward Voltage | 2 V, 5.85 V |
| Forward Current | 30mA |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
