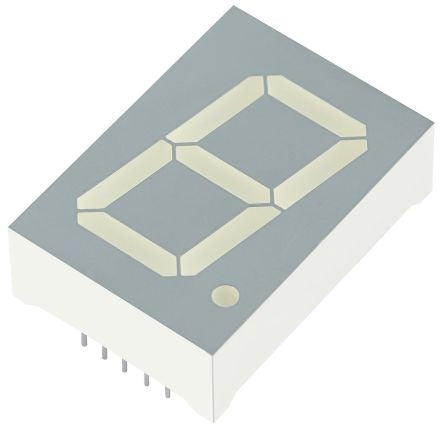

SA10-21SYKWA Kingbright 7-Segment LED Display, CA Yellow 400 mcd RH DP 25.4mm [SA10-21SYKWA]; 145-1534
by Kingbright
0₫
Mã kho: 1451534
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Yellow |
| Number of Segments | 7 |
| Character Width | 14mm |
| Character Height | 25.4mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 34mm |
| External Height | 10.5mm |
| External Dimensions | 24 x 34 x 10.5mm |
| External Width | 24mm |
| Luminous Intensity | 400 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75 (DP) mW, 150 mW |
| Maximum Operating Temperature | +85°C |
| Forward Voltage | 2.5 (DP) V, 5 V |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 175mA |
| Series | SA10 |
| Decimal Orientation | Right Side |
