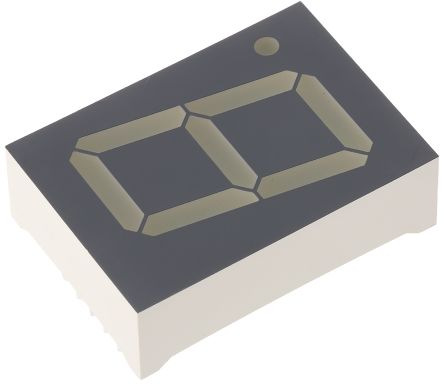

SA10-21EWA Kingbright 7-Segment LED Display, CA Red 23 mcd RH DP 25.4mm [SA10-21EWA]; 235-8979
by Kingbright
0₫
Mã kho: 2358979
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 627 nm |
| Character Width | 13mm |
| Character Height | 25.4mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Dimensions | 32.9 x 22.5 x 8.5mm |
| External Depth | 8.5mm |
| External Height | 32.9mm |
| External Width | 22.5mm |
| Luminous Intensity | 23 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75 mW, 150 mW |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Maximum Operating Temperature | +85°C |
| Forward Voltage | 2 V, 4 V |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
