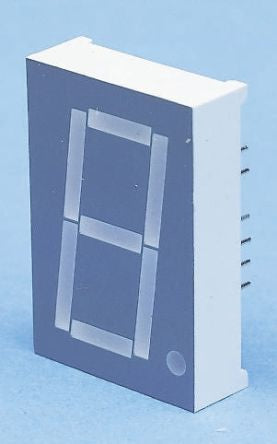

SA10-11PBWA Kingbright 7-Segment LED Display, CA Blue 8 mcd RH DP 26mm [SA10-11PBWA]; 616-4627
by Kingbright
0₫
Mã kho: 6164627
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Blue |
| Number of Segments | 7 |
| Dominant Wavelength | 470 nm |
| Character Width | 13mm |
| Character Height | 26mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 8.5mm |
| External Height | 32.9mm |
| External Dimensions | 32.9 x 22.5 x 8.5mm |
| External Width | 22.5mm |
| Luminous Intensity | 8 mcd |
| Colour of Face | Grey |
| Power Dissipation | 114 mW, 228 mW |
| Forward Voltage | 3.3 V, 6.6 V |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Forward Current | 30mA |
| Minimum Operating Temperature | -40°C |
