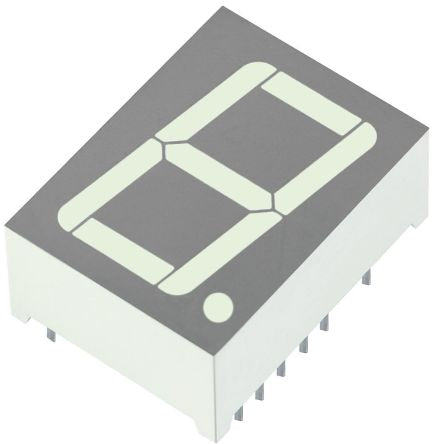

SA08-21SURKWA Kingbright 7-Segment LED Display, CA Red 61 mcd RH DP 20.3mm [SA08-21SURKWA]; 877-1491
by Kingbright
0₫
Mã kho: 8771491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 11mm |
| Character Height | 20.3mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 10.6mm |
| External Width | 25mm |
| External Depth | 18.6mm |
| External Dimensions | 25 x 18.6 x 10.6mm |
| Luminous Intensity | 61 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Voltage | 2 V |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Decimal Orientation | Right Side |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Series | SA08 |
