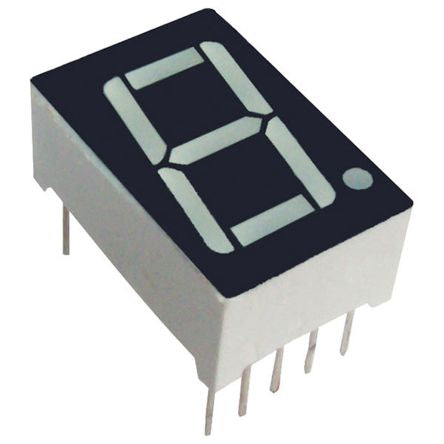

SA08-11SURKWA Kingbright 7-Segment LED Display, CA Red 61 mcd RH DP 20.3mm [SA08-11SURKWA]; 165-4345
by Kingbright
0₫
Mã kho: 1654345
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 630 nm |
Character Width | 11mm |
Character Height | 20.3mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Depth | 20mm |
External Height | 8.4mm |
External Dimensions | 27.1 x 20 x 8.4mm |
External Width | 27.1mm |
Luminous Intensity | 61 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Forward Current | 30mA |
Series | SA08 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Forward Voltage | 2 V |
Decimal Orientation | Right Side |
Operating Temperature Range | -40 → +85°C |
