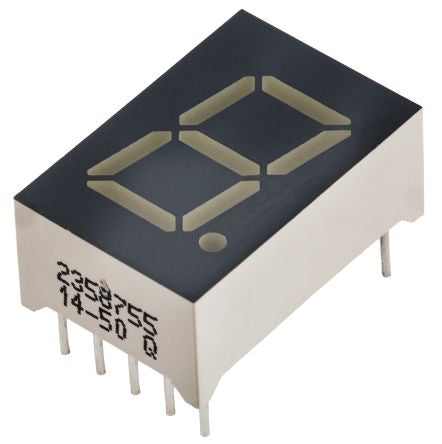

SA05-11SRWA Kingbright 7-Segment LED Display, CA Red 34 mcd RH DP 12.7mm [SA05-11SRWA]; 235-8755
by Kingbright
0₫
Mã kho: 2358755
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 640 nm |
| Character Width | 7.3mm |
| Character Height | 12.7mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Dimensions | 19 x 12.7 x 8mm |
| External Height | 19mm |
| External Width | 12.7mm |
| External Depth | 8mm |
| Luminous Intensity | 34 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 30mA |
| Decimal Orientation | Right Side |
| Forward Voltage | 1.85 V |
| Minimum Operating Temperature | -40°C |
