![Kingbright PSA08-12EWA 4516622](http://nguyenxuong.com/cdn/shop/products/F4516622-01_444x340.jpg?v=1594149127)

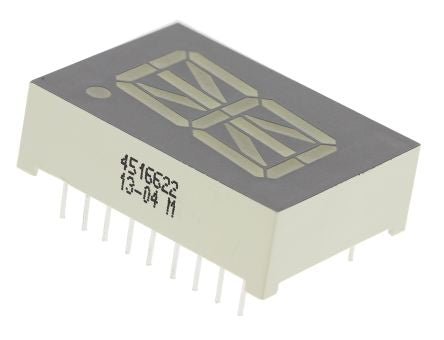

PSA08-12EWA Kingbright 16-Segment LED Display, CA Red 7.7 mcd RH DP 20.3mm [PSA08-12EWA]; 451-6622
by Kingbright
0₫
Mã kho: 4516622
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 16-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 625 nm |
Character Width | 10.9mm |
Character Height | 20.3mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Dimensions | 27.7 x 20 x 8.5mm |
External Height | 27.7mm |
External Depth | 8.5mm |
External Width | 20mm |
Luminous Intensity | 7.7 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Forward Voltage | 2 V |
Decimal Orientation | Right Side |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Forward Current | 30mA |
