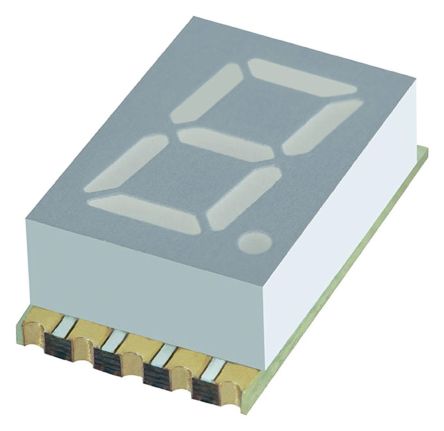

KCSA39-105 Kingbright 7-Segment LED Display, CA Red 36 mcd RH DP 10mm [KCSA39-105]; 165-4315
by Kingbright
0₫
Mã kho: 1654315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 6.2mm |
| Character Height | 10mm |
| Common Connection | Anode |
| Mounting Type | Surface Mount |
| External Height | 3.8mm |
| External Width | 15mm |
| External Depth | 9.8mm |
| External Dimensions | 15 x 9.8 x 3.8mm |
| Luminous Intensity | 36 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 2 V |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Forward Current | 30mA |
| Series | KCSA39 |
