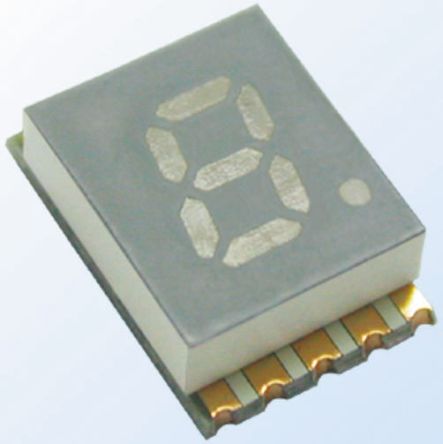

KCSA04-107 Kingbright 7-Segment LED Display, CA Yellow 35 mcd RH DP 10.2mm [KCSA04-107]; 616-5355
by Kingbright
0₫
Mã kho: 6165355
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Yellow |
Number of Segments | 7 |
Dominant Wavelength | 590 nm |
Character Width | 5.6mm |
Character Height | 10.2mm |
Common Connection | Anode |
Mounting Type | Surface Mount |
External Dimensions | 15 x 9.1 x 3.75mm |
External Height | 15mm |
External Depth | 3.8mm |
External Width | 9.1mm |
Luminous Intensity | 35 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Maximum Operating Temperature | +85°C |
Forward Current | 30mA |
Decimal Orientation | Right Side |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Forward Voltage | 2 V |
