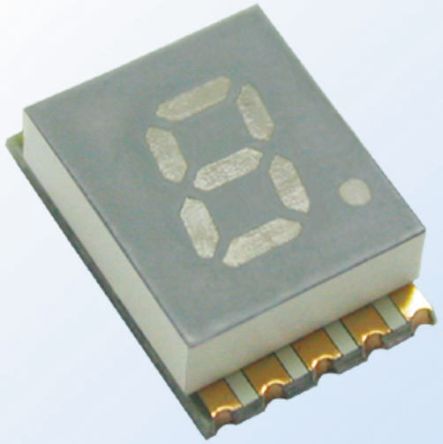

KCSA02-107 Kingbright 7-Segment LED Display, CA Yellow 34 mcd RH DP 5.1mm [KCSA02-107]; 146-1458
by Kingbright
0₫
Mã kho: 1461458
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Yellow |
| Number of Segments | 7 |
| Character Width | 3.2mm |
| Character Height | 5.1mm |
| Common Connection | Anode |
| Mounting Type | Surface Mount |
| External Depth | 3mm |
| External Height | 10mm |
| External Dimensions | 10 x 6.9 x 3mm |
| External Width | 6.9mm |
| Luminous Intensity | 34 mcd |
| Colour of Face | Grey |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +85°C |
