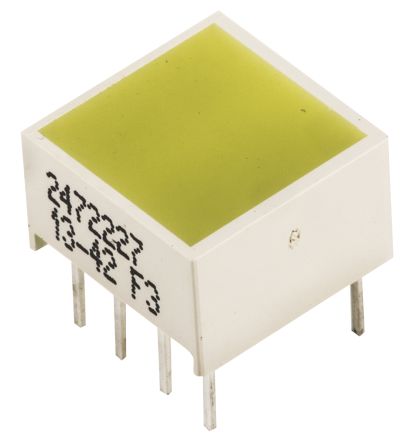

KB-2755YD Kingbright Light Bar LED Display, Yellow 15 mcd [KB-2755YD]; 247-2227
by Kingbright
0₫
Mã kho: 2472227
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Light Bar |
| LED Colours | Yellow |
| Number of Segments | 1 |
| Dominant Wavelength | 588 nm |
| Mounting Type | Through Hole |
| External Width | 9.9mm |
| External Dimensions | 9.9 x 9.9 x 6.1mm |
| External Height | 9.9mm |
| External Depth | 6.1mm |
| Luminous Intensity | 15 mcd |
| Colour of Face | White |
| Power Dissipation | 75mW |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Forward Voltage | 2.1 V |
