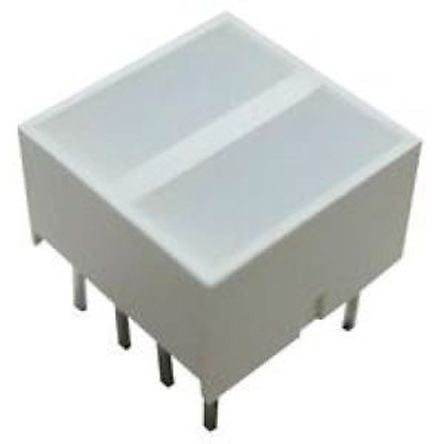

KB-2700SYKW Kingbright Light Bar LED Display, Yellow 370 mcd [KB-2700SYKW]; 871-4883
by Kingbright
0₫
Mã kho: 8714883
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Light Bar |
| LED Colours | Yellow |
| Number of Segments | 1 |
| Dominant Wavelength | 590 nm |
| Mounting Type | Through Hole |
| External Width | 9.9mm |
| External Depth | 9.9mm |
| External Dimensions | 9.9 x 9.9 x 6.1mm |
| External Height | 6.1mm |
| Luminous Intensity | 370 mcd |
| Colour of Face | White |
| Power Dissipation | 75mW |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 2 V |
| Series | KB |
| Maximum Operating Temperature | +85°C |
| Forward Current | 30mA |
| Operating Temperature Range | -40 → +85°C |
