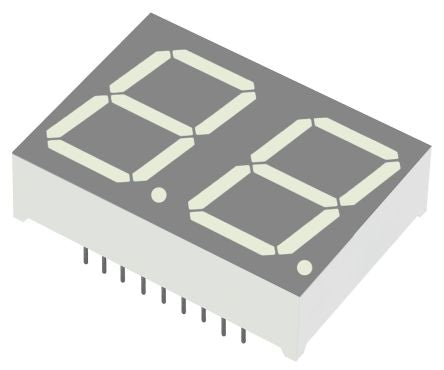

DC08-11SURKWA Kingbright 2 Digit 7-Segment LED Display, CC Red 75 mcd RH DP 20.3mm [DC08-11SURKWA]; 169-7827
by Kingbright
0₫
Mã kho: 1697827
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 2 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 12.5mm |
| Character Height | 20.3mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Width | 35.8mm |
| External Dimensions | 35.8 x 25.85 x 10mm |
| External Depth | 25.9mm |
| External Height | 10mm |
| Luminous Intensity | 75 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Forward Voltage | 2 V |
| Forward Current | 30mA |
| Series | DC08 |
