![Kingbright DC-20/20SEKWA 1651507](http://nguyenxuong.com/cdn/shop/products/W7192418-01_9ee00211-4c68-4ade-b486-52bf0705bb53_444x266.jpg?v=1594377036)

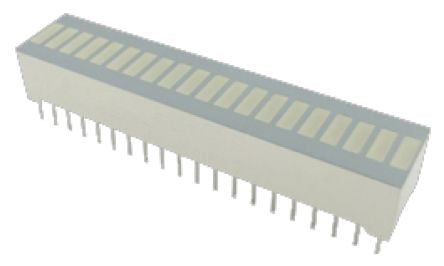

DC-20/20SEKWA Kingbright Light Bar LED Display, Orange 110000 mcd [DC-20/20SEKWA]; 165-1507
by Kingbright
0₫
Mã kho: 1651507
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Light Bar |
LED Colours | Orange |
Number of Segments | 20 |
Dominant Wavelength | 601 nm |
Mounting Type | Through Hole |
External Height | 10.2mm |
External Depth | 8mm |
External Dimensions | 10.2 x 50.7 x 8mm |
External Width | 50.7mm |
Luminous Intensity | 110000 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Forward Voltage | 2.1 V |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Forward Current | 30mA |
