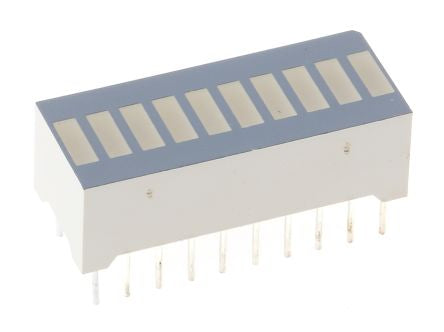

DC-10SRWA Kingbright Light Bar LED Display, Red 30 mcd [DC-10SRWA]; 247-3084
by Kingbright
0₫
Mã kho: 2473084
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Light Bar |
| LED Colours | Red |
| Number of Segments | 10 |
| Dominant Wavelength | 640 nm |
| Mounting Type | Through Hole |
| External Dimensions | 10.2 x 25.4 x 8mm |
| External Width | 25.4mm |
| External Height | 10.2mm |
| External Depth | 8mm |
| Luminous Intensity | 30 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Current | 30mA |
| Forward Voltage | 1.85 V |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
