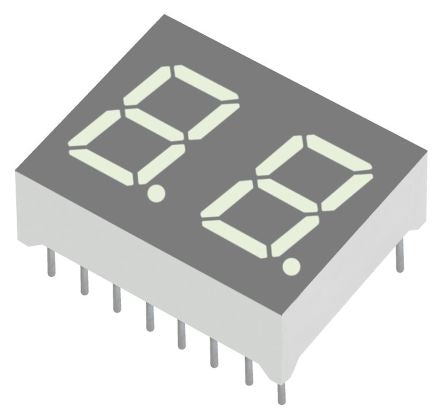

DA04-11SURKWA Kingbright 2 Digit 7-Segment LED Display, CA Red 54 mcd RH DP 10mm [DA04-11SURKWA]; 877-0861
by Kingbright
0₫
Mã kho: 8770861
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 2 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 630 nm |
Character Width | 6mm |
Character Height | 10mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Depth | 16mm |
External Width | 20.2mm |
External Dimensions | 20.2 x 16 x 7mm |
External Height | 7mm |
Luminous Intensity | 54 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Minimum Operating Temperature | -40°C |
Series | DA04 |
Forward Voltage | 2 V |
Decimal Orientation | Right Side |
Forward Current | 30mA |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
