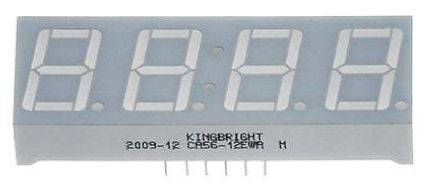

CA56-11SURKWA Kingbright 4 Digit 7-Segment LED Display, CA Red 24 mcd RH DP 14.2mm [CA56-11SURKWA]; 165-1504
by Kingbright
0₫
Mã kho: 1651504
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 4 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 630 nm |
Character Width | 8mm |
Character Height | 14.2mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Dimensions | 8.1 x 19 x 50.3mm |
External Depth | 50.3mm |
External Height | 8.1mm |
External Width | 19mm |
Luminous Intensity | 24 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Forward Current | 30mA |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Forward Voltage | 2 V |
Decimal Orientation | Right Side |
