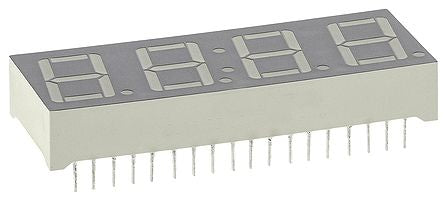

CA25-11SURKWA Kingbright 4 Digit 7-Segment LED Display, CA Red 80 mcd RH DP 6.2mm [CA25-11SURKWA]; 872-1935
by Kingbright
0₫
Mã kho: 8721935
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 4 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 3.5mm |
| Character Height | 6.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 5mm |
| External Depth | 11mm |
| External Width | 36mm |
| External Dimensions | 36 x 11 x 5mm |
| Luminous Intensity | 80 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75 mW, 150 mW |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Decimal Orientation | Right Side |
| Forward Voltage | 2 V |
| Minimum Operating Temperature | -40°C |
| Series | CA25 |
| Forward Current | 20mA |
