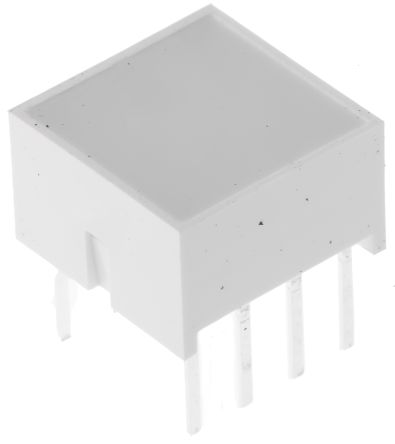

HLMP-2655-EF000 Broadcom Light Bar LED Display, Red 45 mcd [HLMP-2655-EF000]; 109-359
by Broadcom
0₫
Mã kho: 109359
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Light Bar |
| LED Colours | Red |
| Number of Segments | 1 |
| Dominant Wavelength | 626 nm |
| Mounting Type | Through Hole |
| External Width | 10.2mm |
| External Dimensions | 10.2 x 10.2 x 6.2mm |
| External Height | 10.2mm |
| External Depth | 6.2mm |
| Luminous Intensity | 45 mcd |
| Colour of Face | White |
| Minimum Operating Temperature | -40°C |
| Forward Current | 20mA |
| Forward Voltage | 2 V |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
