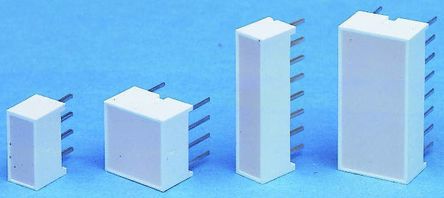

HLMP-2550-FG000 Broadcom Light Bar LED Display, Green 50 mcd [HLMP-2550-FG000]; 195-063
by Broadcom
0₫
Mã kho: 195063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Light Bar |
LED Colours | Green |
Number of Segments | 1 |
Dominant Wavelength | 585 nm |
Mounting Type | Through Hole |
External Dimensions | 5 x 20.3 x 6.2mm |
External Depth | 6.2mm |
External Height | 5mm |
External Width | 20.3mm |
Luminous Intensity | 50 mcd |
Colour of Face | White |
Forward Current | 20mA |
Forward Voltage | 2.1 V |
Operating Temperature Range | -20 → +85°C |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +85°C |
