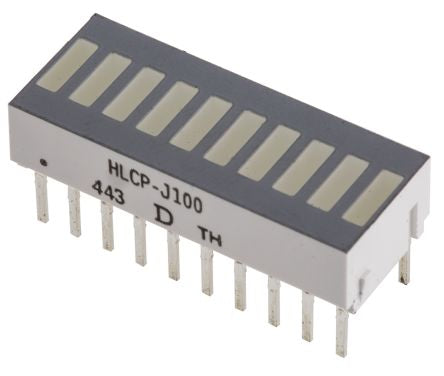

HLCP-J100 Broadcom Light Bar LED Display, Red 5.2 mcd [HLCP-J100]; 178-2967
by Broadcom
0₫
Mã kho: 1782967
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Light Bar |
| LED Colours | Red |
| Number of Segments | 10 |
| Dominant Wavelength | 637 nm |
| Mounting Type | Through Hole |
| External Depth | 6.1mm |
| External Dimensions | 10.2 x 25.4 x 6.1mm |
| External Height | 10.2mm |
| External Width | 25.4mm |
| Luminous Intensity | 5.2 mcd |
| Colour of Face | Grey |
| Power Dissipation | 37mW |
| Minimum Operating Temperature | -20°C |
| Forward Voltage | 1.8 V |
| Forward Current | 15mA |
| Operating Temperature Range | -20 → +100°C |
| Maximum Operating Temperature | +100°C |
