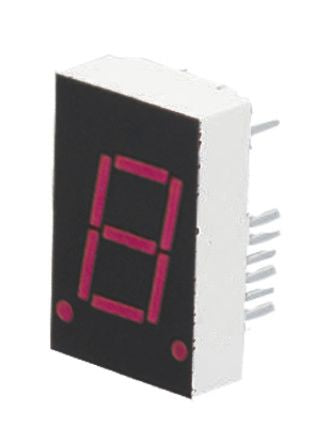

HDSP-N151 Broadcom 7-Segment LED Display, CA Red 14 mcd RH DP 20.3mm [HDSP-N151]; 178-2963
by Broadcom
0₫
Mã kho: 1782963
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 637 nm |
| Character Width | 11.1mm |
| Character Height | 20.3mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Width | 20mm |
| External Dimensions | 27.7 x 20 x 8.4mm |
| External Depth | 8.4mm |
| External Height | 27.7mm |
| Luminous Intensity | 14 mcd |
| Colour of Face | Grey |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -20 → +100°C |
| Maximum Operating Temperature | +100°C |
| Forward Voltage | 1.8 V |
| Minimum Operating Temperature | -20°C |
| Forward Current | 40mA |
