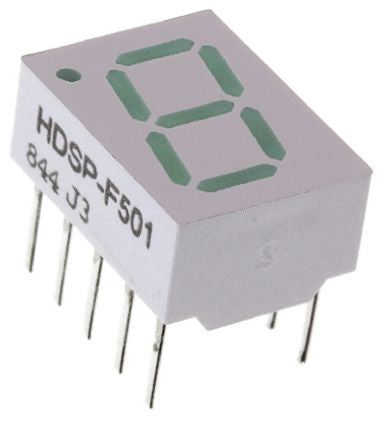

HDSP-F501 Broadcom 7-Segment LED Display, CA Green 3.5 mcd RH DP 10.2mm [HDSP-F501]; 246-5471
by Broadcom
0₫
Mã kho: 2465471
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Green |
Number of Segments | 7 |
Dominant Wavelength | 571 nm |
Character Width | 5.6mm |
Character Height | 10.2mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Dimensions | 12.9 x 9.8 x 6.36mm |
External Width | 9.8mm |
External Height | 12.9mm |
External Depth | 6.4mm |
Luminous Intensity | 3.5 mcd |
Colour of Face | Grey |
Decimal Orientation | Right Side |
Forward Voltage | 2.1 V |
Minimum Operating Temperature | -40°C |
Forward Current | 30mA |
Operating Temperature Range | -40 → +100°C |
Maximum Operating Temperature | +100°C |
