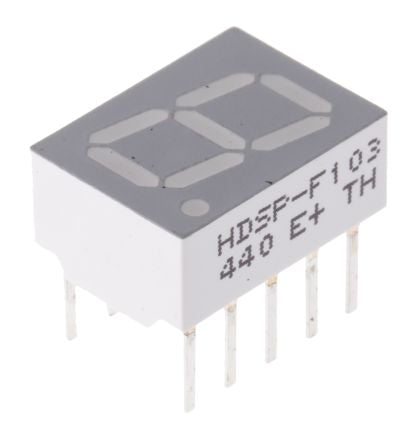

HDSP-F103 Broadcom 7-Segment LED Display, CC Red 3.9 mcd RH DP 10.2mm [HDSP-F103]; 451-067
by Broadcom
0₫
Mã kho: 451067
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 637 nm |
| Character Width | 5.6mm |
| Character Height | 10.2mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 5.1mm |
| External Height | 12.9mm |
| External Dimensions | 12.9 x 9.8 x 5.08mm |
| External Width | 9.8mm |
| Luminous Intensity | 3.9 mcd |
| Colour of Face | Grey |
| Forward Voltage | 1.7 V |
| Minimum Operating Temperature | -20°C |
| Forward Current | 15mA |
| Decimal Orientation | Right Side |
| Maximum Operating Temperature | +100°C |
| Operating Temperature Range | -20 → +100°C |
