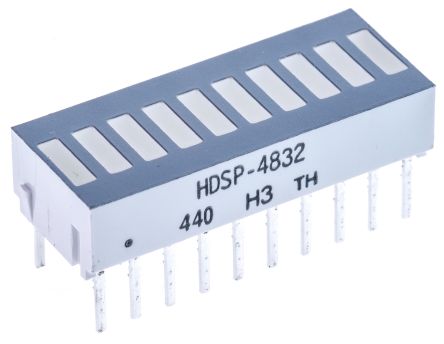

HDSP-4832 Broadcom Light Bar LED Display, Green/Red/Yellow 1900 μcd, 3500 μcd [HDSP-4832]; 246-5689
by Broadcom
0₫
Mã kho: 2465689
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Light Bar |
LED Colours | Green, Red, Yellow |
Number of Segments | 10 |
Dominant Wavelength | 585/571/626 nm |
Mounting Type | Through Hole |
External Height | 10.2mm |
External Depth | 6.1mm |
External Dimensions | 10.2 x 25.4 x 6.1mm |
External Width | 25.4mm |
Luminous Intensity | 1900 μcd, 3500 μcd |
Colour of Face | Grey |
Power Dissipation | 37 mW, 50 mW, 105 mW |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Forward Voltage | 2.1 V, 2.2 V |
Forward Current | 60 mA, 90 mA |
