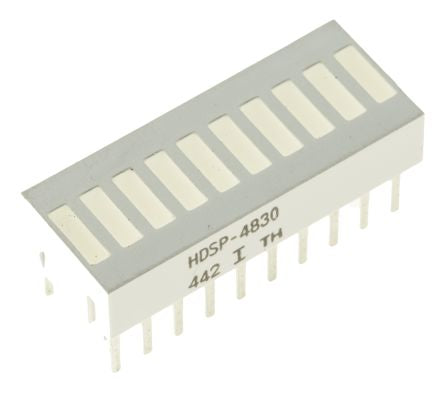

HDSP-4830 Broadcom Light Bar LED Display, Red 3.5 mcd [HDSP-4830]; 178-2960
by Broadcom
0₫
Mã kho: 1782960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Light Bar |
LED Colours | Red |
Number of Segments | 10 |
Dominant Wavelength | 626 nm |
Mounting Type | Through Hole |
External Depth | 6.1mm |
External Height | 10.2mm |
External Width | 25.4mm |
External Dimensions | 10.2 x 25.4 x 6.1mm |
Luminous Intensity | 3.5 mcd |
Colour of Face | Grey |
Power Dissipation | 37mW |
Minimum Operating Temperature | -40°C |
Forward Voltage | 2.1 V |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Forward Current | 90mA |
