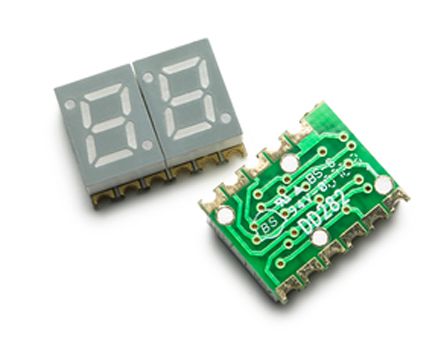

HDSM-291C Broadcom 2 Digit 7-Segment LED Display, CA Red 7.5 mcd Lower, Upper 7mm [HDSM-291C]; 178-3067
by Broadcom
0₫
Mã kho: 1783067
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 2 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 632 nm |
Character Width | 4.6mm |
Character Height | 7mm |
Common Connection | Anode |
Mounting Type | Surface Mount |
External Dimensions | 15.1 x 12 x 3.75mm |
External Width | 12mm |
External Height | 15.1mm |
External Depth | 3.8mm |
Luminous Intensity | 7.5 mcd |
Colour of Face | Grey |
Power Dissipation | 65mW |
Decimal Orientation | Lower, Upper |
Forward Voltage | 2 V |
Series | HDSM |
Forward Current | 25mA |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +105°C |
Maximum Operating Temperature | +105°C |
For Use With | Traffic Management |
