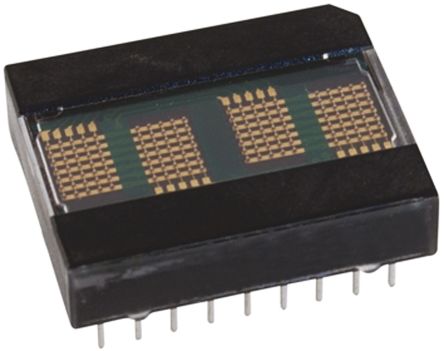

HDLG-2416 Broadcom 4 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Green 5.6 mcd 5.1mm [HDLG-2416]; 830-5114
by Broadcom
0₫
Mã kho: 8305114
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Dot Matrix |
| Number of Characters | 4 |
| LED Colours | Green |
| Dominant Wavelength | 574 nm |
| Character Width | 3.4mm |
| Character Height | 5.1mm |
| Mounting Type | Through Hole |
| External Height | 6.6mm |
| External Dimensions | 25.15 x 20.07 x 6.6mm |
| External Depth | 20.1mm |
| External Width | 25.2mm |
| Decoder Included | Yes |
| Luminous Intensity | 5.6 mcd |
| Colour of Face | Black |
| Dot Matrix Dimensions | 7 x 5 |
| Operating Temperature Range | -40 → +85°C |
| Dots Wide | 7 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Dots High | 5 |
| Dot Matrix Format | 5 x 7 |
