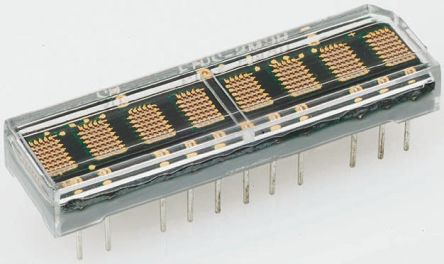

HCMS-3966 Broadcom 4 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Red 2.3 mcd 4.6mm [HCMS-3966]; 178-3109
by Broadcom
0₫
Mã kho: 1783109
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Dot Matrix |
| Number of Characters | 4 |
| LED Colours | Red |
| Dominant Wavelength | 628 nm |
| Character Width | 2.5mm |
| Character Height | 4.6mm |
| Mounting Type | Through Hole |
| External Dimensions | 11.4 x 21.5 x 5.3mm |
| External Height | 11.4mm |
| External Width | 21.5mm |
| External Depth | 5.3mm |
| Decoder Included | Yes |
| Luminous Intensity | 2.3 mcd |
| Colour of Face | Black |
| Dot Matrix Format | 5 x 7 |
| Dots Wide | 5 |
| Dot Matrix Dimensions | 7 x 5 |
| Dots High | 7 |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
