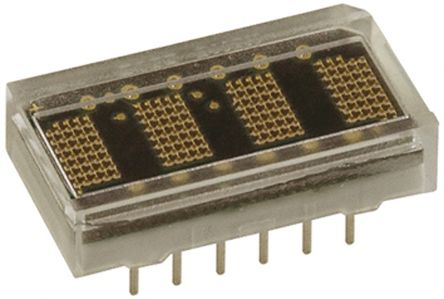

HCMS-3906 Broadcom 4 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Red 2.3 mcd 3.7mm [HCMS-3906]; 178-3108
by Broadcom
0₫
Mã kho: 1783108
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Dot Matrix |
| Number of Characters | 4 |
| LED Colours | Red |
| Dominant Wavelength | 628 nm |
| Character Width | 2.1mm |
| Character Height | 3.7mm |
| Mounting Type | Through Hole |
| External Depth | 5.1mm |
| External Width | 17.8mm |
| External Dimensions | 10.2 x 17.8 x 5.1mm |
| External Height | 10.2mm |
| Decoder Included | Yes |
| Luminous Intensity | 2.3 mcd |
| Colour of Face | Black |
| Maximum Operating Temperature | +85°C |
| Dot Matrix Format | 5 x 7 |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Dots Wide | 5 |
| Dots High | 7 |
| Dot Matrix Dimensions | 7 x 5 |
