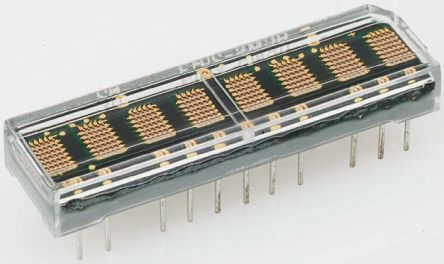

HCMS-2913 Broadcom 8 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Green 0.11 mcd 3.7mm [HCMS-2913]; 497-0329
by Broadcom
0₫
Mã kho: 4970329
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Dot Matrix |
Number of Characters | 8 |
LED Colours | Green |
Dominant Wavelength | 574 nm |
Character Width | 2.1mm |
Character Height | 3.7mm |
Mounting Type | Through Hole |
External Dimensions | 10.2 x 35.6 x 5.1mm |
External Width | 35.6mm |
External Height | 10.2mm |
External Depth | 5.1mm |
Decoder Included | Yes |
Luminous Intensity | 0.11 mcd |
Colour of Face | Black |
Minimum Operating Temperature | -40°C |
Dots Wide | 5 |
Dot Matrix Format | 5 x 7 |
Dots High | 7 |
Dot Matrix Dimensions | 7 x 5 |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
