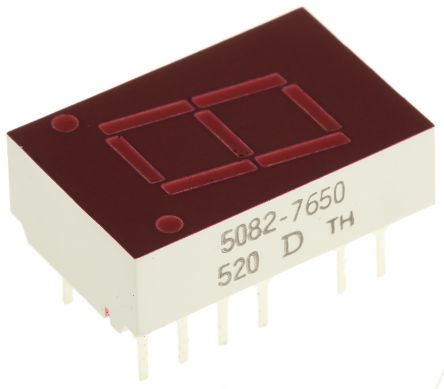

5082-7650 Broadcom 7-Segment LED Display, CA Red 1.1 mcd LH DP 10.9mm [5082-7650]; 178-2993
by Broadcom
0₫
Mã kho: 1782993
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 626 nm |
| Character Width | 7mm |
| Character Height | 10.9mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 19.1mm |
| External Dimensions | 19.1 x 12.7 x 6.4mm |
| External Width | 12.7mm |
| External Depth | 6.4mm |
| Luminous Intensity | 1.1 mcd |
| Colour of Face | Red |
| Power Dissipation | 105mW |
| Forward Voltage | 2.1 V |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Decimal Orientation | Left Side |
| Maximum Operating Temperature | +100°C |
| Operating Temperature Range | -40 → +100°C |
