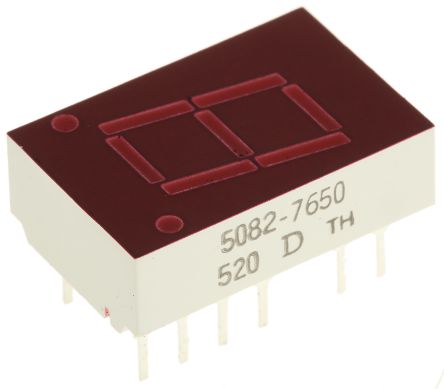

5082-7650 Broadcom 7-Segment LED Display, CA Red 1.1 mcd LH DP 10.9mm [5082-7650]; 113-4441
by Broadcom
0₫
Mã kho: 1134441
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 626 nm |
Character Width | 7mm |
Character Height | 10.9mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Width | 12.7mm |
External Depth | 6.4mm |
External Height | 19.1mm |
External Dimensions | 19.1 x 12.7 x 6.4mm |
Luminous Intensity | 1.1 mcd |
Colour of Face | Red |
Power Dissipation | 105mW |
Minimum Operating Temperature | -40°C |
Forward Current | 30mA |
Forward Voltage | 2.1 V |
Maximum Operating Temperature | +100°C |
Operating Temperature Range | -40 → +100°C |
Decimal Orientation | Left Side |
