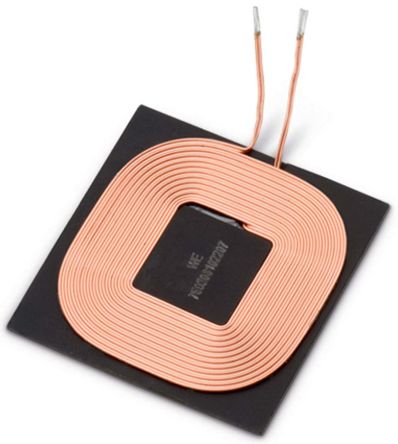

Wurth 8 μH ±10% Ferrite Wireless Charging Receiver Coil, Max SRF:16MHz, Q:30, 5A Idc, 80mΩ Rdc WE-WPCC [760308102207]; 163-7512
0₫
Mã kho: 1637512
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 8 μH |
| Maximum DC Current | 5A |
| Mounting Type | Axial |
| Maximum DC Resistance | 80mΩ |
| Tolerance | ±10% |
| Length | 40mm |
| Depth | 1.2mm |
| Height | 40mm |
| Dimensions | 40 x 40 x 1.2mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 16MHz |
| Lead Pitch | 5mm |
| Series | WE-WPCC |
| Minimum Quality Factor | 30 |
| Minimum Operating Temperature | -20°C |
| Lead Diameter | 0.9mm |
| Maximum Operating Temperature | +105°C |
