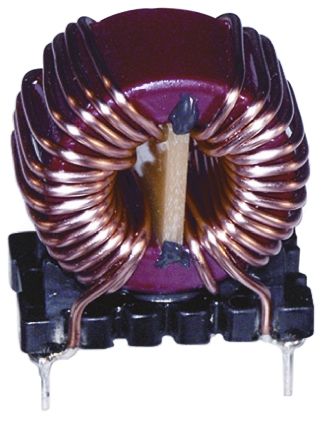

Wurth 1.3 mH ±30% Ferrite Leaded Inductor, Max SRF:10kHz, 20A Idc, 6.2mΩ Rdc WE-CMB HC [7448262013]; 756-8430
0₫
Mã kho: 7568430
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1.3 mH |
| Maximum DC Current | 20A |
| Mounting Type | Through Hole |
| Maximum DC Resistance | 6.2mΩ |
| Tolerance | ±30% |
| Length | 43.5mm |
| Depth | 23.5mm |
| Height | 43mm |
| Dimensions | 43.5 x 23.5 x 43mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 10kHz |
| Lead Pitch | 10mm |
| Series | WE-CMB HC |
| Terminal Type | Through Hole |
| Lead Diameter | 1.8mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
