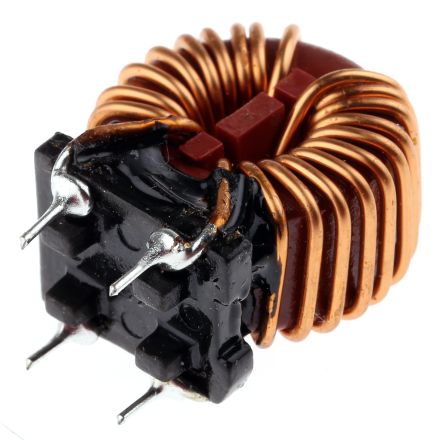

Wurth 1 mH ±30% Leaded Inductor, 6A Idc, 13mΩ Rdc WE-CMB [744823601]; 163-3397
0₫
Mã kho: 1633397
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1 mH |
| Maximum DC Current | 6A |
| Mounting Type | Radial |
| Maximum DC Resistance | 13mΩ |
| Tolerance | ±30% |
| Length | 25mm |
| Depth | 17mm |
| Height | 26.5mm |
| Dimensions | 25 x 17 x 26.5mm |
| Lead Pitch | 10.7mm |
| Series | WE-CMB |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
