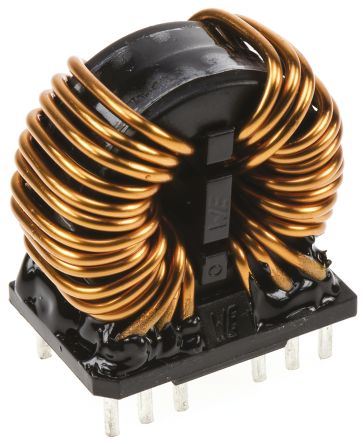

Wurth 2 x 12 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 10A Idc [7448051012]; 816-4828
0₫
Mã kho: 8164828
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2 x 12 mH |
| Maximum DC Current | 10A |
| Mounting Type | Through Hole |
| Maximum DC Resistance | 2 x 15mΩ |
| Tolerance | -30 → +50% |
| Length | 34mm |
| Depth | 23mm |
| Height | 36mm |
| Dimensions | 34 x 23 x 36mm |
| Core Material | Nano Crystalline |
| Maximum Self Resonant Frequency | 1 kHz → 300 MHz |
| Lead Pitch | 25mm |
| Series | WE-CMBNC |
| Lead Diameter | 1.2mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Through Hole |
