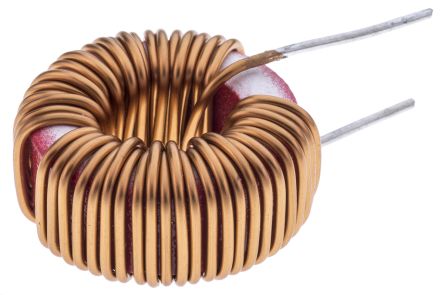

Wurth 150 μH ±20% Composite Iron Powder Toroidal Inductor, 6.1A Idc, 45mΩ Rdc WE-FI [7447076]; 163-3299
0₫
Mã kho: 1633299
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 150 μH |
| Maximum DC Current | 6.1A |
| Mounting Type | Lead Wire |
| Maximum DC Resistance | 45mΩ |
| Tolerance | ±20% |
| Diameter | 27.5mm |
| Depth | 14mm |
| Dimensions | 27.5 (Dia.) x 14mm |
| Core Material | Composite Iron Powder |
| Lead Pitch | 11.5mm |
| Series | WE-FI |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +105°C |
| Terminal Type | Through Hole |
