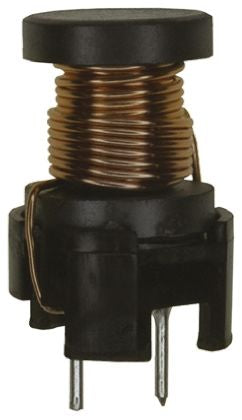

Panasonic 18 μH ±20% Ferrite Leaded Inductor, 5.6A Idc, 22mΩ Rdc ELC18B [ELC18B180L]; 750-0765
by Panasonic
0₫
Mã kho: 7500765
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 18 μH |
| Maximum DC Current | 5.6A |
| Mounting Type | Radial |
| Maximum DC Resistance | 22mΩ |
| Tolerance | ±20% |
| Diameter | 18mm |
| Height | 27mm |
| Dimensions | 18 (Dia.) x 27mm |
| Core Material | Ferrite |
| Lead Pitch | 7.5mm |
| Series | ELC18B |
| Lead Diameter | 1mm |
