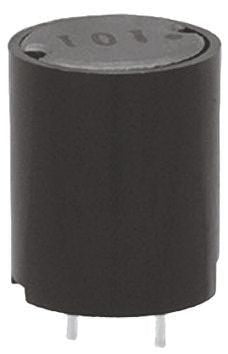

Panasonic 39 μH ±10% Ferrite Leaded Inductor, 2.5A Idc, 57mΩ Rdc ELC11D [ELC11D390F]; 675-5387
by Panasonic
0₫
Mã kho: 6755387
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 39 μH |
| Maximum DC Current | 2.5A |
| Mounting Type | Radial |
| Maximum DC Resistance | 57mΩ |
| Tolerance | ±10% |
| Diameter | 11.5mm |
| Height | 13.9mm |
| Dimensions | 11.5 (Dia.) x 13.9mm |
| Core Material | Ferrite |
| Lead Pitch | 5mm |
| Series | ELC11D |
