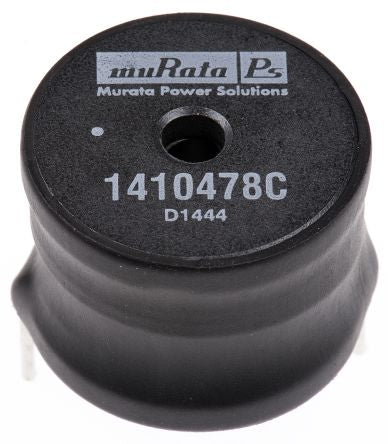

Murata 100 μH ±10% Radial Inductor, Max SRF:3.3MHz, Q:34, 7.8A Idc, 40mΩ Rdc 1400 [1410478C]; 228-589
0₫
Mã kho: 228589
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 100 μH |
| Maximum DC Current | 7.8A |
| Mounting Type | Radial |
| Maximum DC Resistance | 40mΩ |
| Tolerance | ±10% |
| Length | 32.4mm |
| Depth | 29.8mm |
| Height | 21.8mm |
| Dimensions | 32.4 x 29.8 x 21.8mm |
| Maximum Self Resonant Frequency | 3.3MHz |
| Lead Pitch | 29.3mm |
| Series | 1400 |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 34 |
