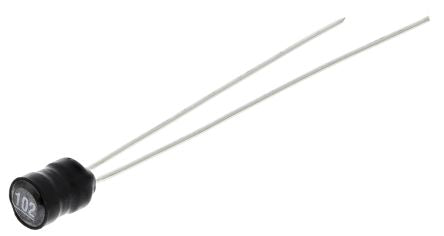

Murata 1 μH ±20% Leaded Inductor, Max SRF:1kHz, 3A Idc, 20mΩ Rdc 1100R [11R102C]; 800-4353
0₫
Mã kho: 8004353
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 1 μH |
Maximum DC Current | 3A |
Maximum DC Resistance | 20mΩ |
Tolerance | ±20% |
Diameter | 5mm |
Height | 7.5mm |
Dimensions | 5 (Dia.) x 7.5mm |
Maximum Self Resonant Frequency | 1kHz |
Lead Pitch | 2mm |
Series | 1100R |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Lead Diameter | 0.5mm |
