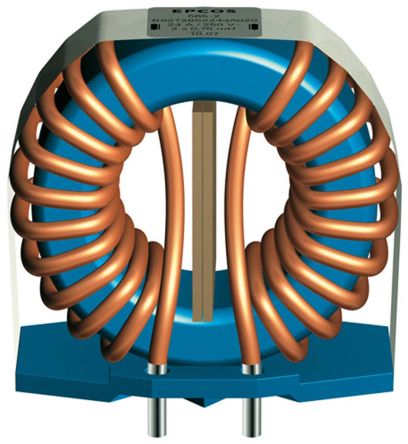

EPCOS 750 μH -30 → +50% Ferrite Toroidal Inductor, Max SRF:100kHz, 24A Idc, 3.2mΩ Rdc B82726S [B82726S2243A020]; 162-0137
by EPCOS
0₫
Mã kho: 1620137
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 750 μH |
| Maximum DC Current | 24A |
| Mounting Type | Radial |
| Maximum DC Resistance | 3.2mΩ |
| Tolerance | -30 → +50% |
| Length | 45mm |
| Depth | 25mm |
| Height | 41mm |
| Dimensions | 45 x 25 x 41mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 100kHz |
| Lead Pitch | 10mm |
| Series | B82726S |
| Terminal Type | PC Pin |
| Maximum Operating Temperature | +60°C |
| Lead Diameter | 2mm |
