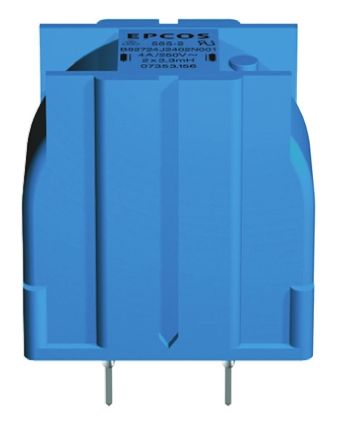

EPCOS 27 mH ±30% Ferrite Power Inductor, 1.4A Idc, 460mΩ Rdc B82721A [B82724J2142N001]; 167-0144
by EPCOS
0₫
Mã kho: 1670144
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 27 mH |
| Maximum DC Current | 1.4A |
| Mounting Type | Radial |
| Maximum DC Resistance | 460mΩ |
| Tolerance | ±30% |
| Length | 31.3mm |
| Depth | 18.5mm |
| Height | 33.2mm |
| Dimensions | 31.3 x 18.5 x 33.2mm |
| Core Material | Ferrite |
| Lead Pitch | 12.5 mm, 15 mm |
| Series | B82721A |
| Minimum Operating Temperature | -40°C |
| Lead Diameter | 0.7mm |
| Maximum Operating Temperature | +125°C |
